In the past few years, the mapping and surveying world
witnessed the advances of drones. They have improved the accuracy and cost of
mapping. Today, Drone technology has made 3D maps of landscapes, buildings, and
other sites much more accessible. It's easier now than ever before. This
article will study the process and methods of 3D mapping with a drone. As they
are opening the door for aerial surveying and data analysis.
The Preparation Of A Drone
Before starting a 3D mapping trip, ensure your drone is all
set. Test if the battery is fully charged, the software is updated, and all the
components work well. For more preparation, add an expensive camera or a GPS
tool. Then, your drone can be ready for data collection during the mapping
mission. This is like you have filled the tank of your car. And fixed new tires
for a vehicle before a long road trip. Getting the drone ready is just like
that. You have to check for all the things before. So that the process can be
error-free.

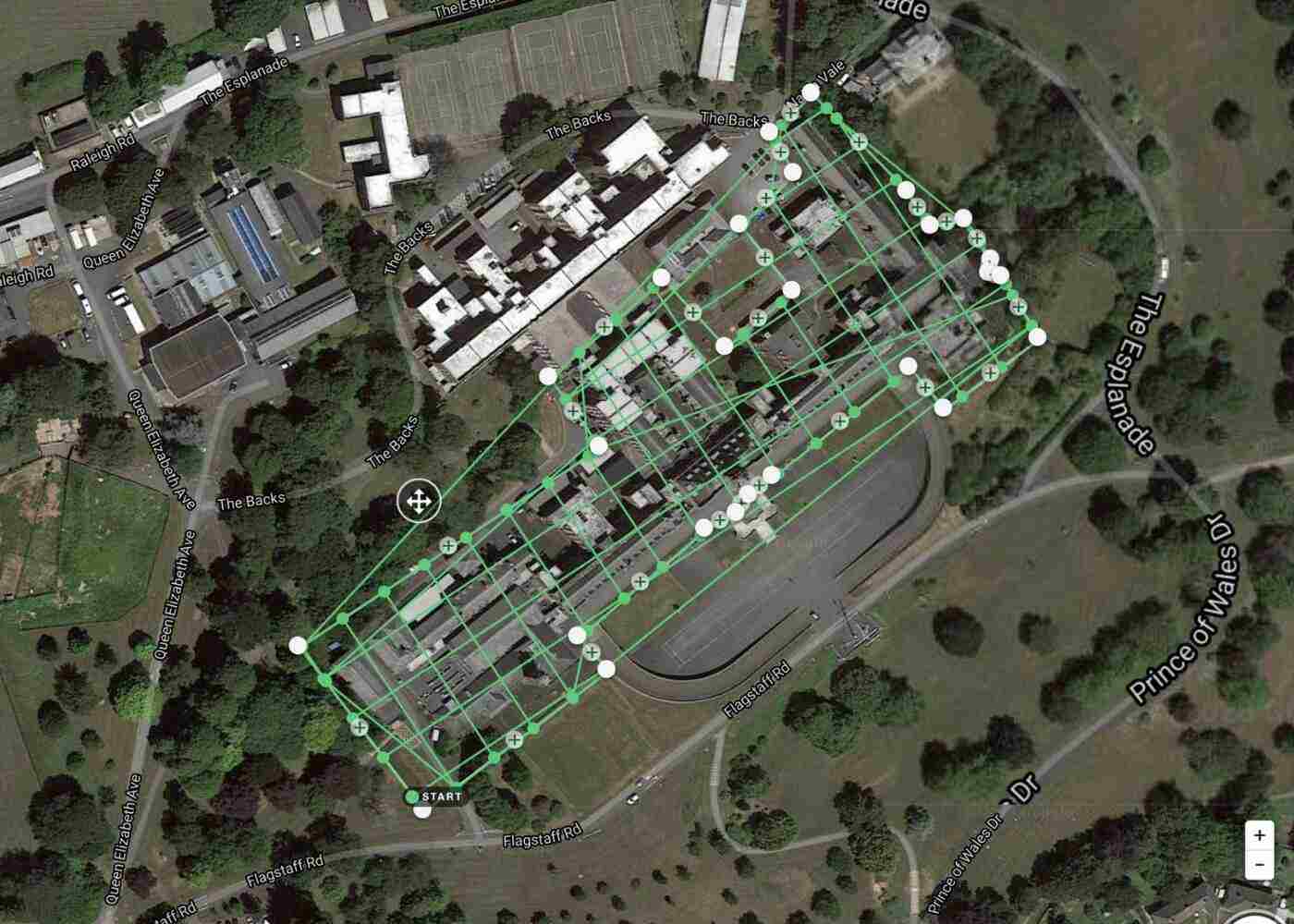

Planning Of Flight Path
Planning the flight route of your drone is like mapping a
road trip. You should decide where You want to go and how to get there. Use
special software or apps to find your location on the map. And make the drone
route you need. Always ensure that the path is set to cover the entire area.
And you have results with enough snapshots placed side-by-side. In addition,
this helps acquire a thorough picture of the area that needs to be correctly
mapped. Also, consider factors such as how high your drone will fly. How fast
will it go? And what is the best arrangement for the camera?
Taking Photographs
Once the flight path has been calculated, the next is
launching the drone. Also, start imaging the target area. Fly along a defined
route using it. The drone should continuously maintain a constant altitude and
speed. As it is essential to ensure uniform image coverage throughout its
range. Remember to take shots from different perspectives. If you can use a
camera to take very detailed pictures, this will be very nice. It will enable
one to capture good detail and make the image look sharp.
Data Processing
Next comes putting together images taken during the mapping
flight. Also, create a 3D model of your targeted region. Incorporate
photogrammetry software with specialized functionalities for analysis purposes,
such as determining common points on land or structures you want to cover. This
process combines individual images taken at different points into one
geographical area. That is aligned together to make a detailed map for that
site. These calculations result in a 3D model, which looks continuous.
According to the area's complexity and the details required, it might take some
time to do such a job.
Mapping And Interpreting The Model
After making the 3D model, it can be studied in depth for
valuable information. Use GIS or 3D modelling to explore these models from
different angles. This helps in identifying land's environmental conditions
through measuring distances and angles. And selecting important features or
areas of interest. This technology and its applications are used in many
different fields. For example, in urban planning, infrastructure development,
and environmental monitoring.
Incorporating April Tags
April tags are referred to as unique markers. They can be
placed on objects or surfaces to facilitate mapping and navigation. The drone
should be positioned at that point with a right angle within the target area.
As it guarantees that the mapping process is executed precisely. The drone can
determine its position and orientation by the april tags". This implies more accurate image
positioning can be achieved with increased precision. Using these markers can
improve the accuracy and quality of 3D mapping.
Conclusion
3D mapping using drones is a powerful tool for collecting
data on spatial details. This led to the creation of precise 3D models of the
surroundings. There are several advantages of this technology, such as the use
of drones. For instance, there are many industries where one can benefit from
such applications. Drones provide unimaginable accuracy and acceptable results
that have never been recorded. Precise data acquisition by careful programming
and improved processing techniques is beneficial. Experience all the possible
options you have in terms of aerial mapping through drones.
