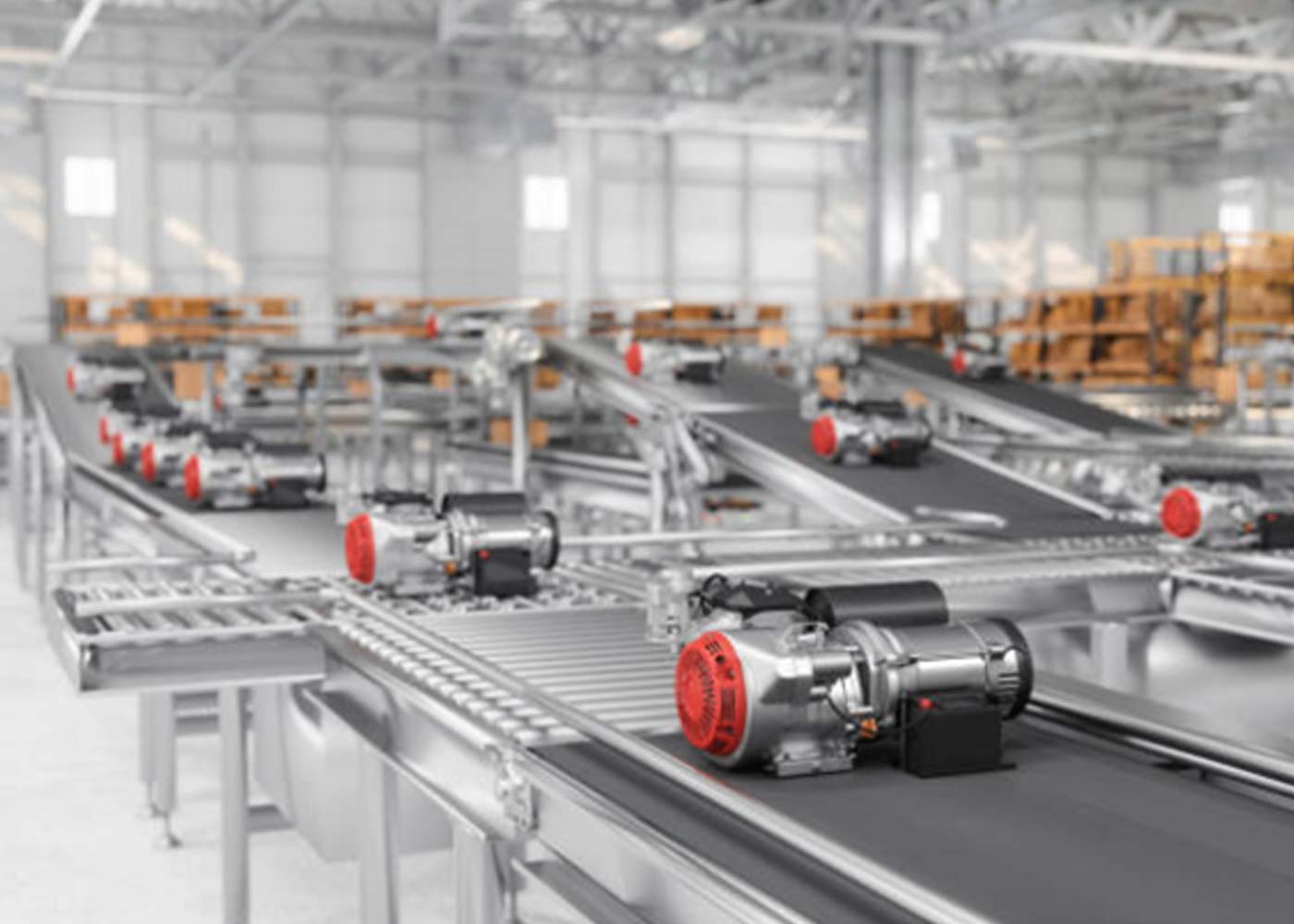

A Beginner's Introduction to Understanding How Conveyor Belts Work

Reverbtime Magazine -
  • 1
  • 150
Scroll Down For More

A conveyor belt is a continuous loop that moves materials. It's driven by pulleys and powered by an electric motor, resting on a metal plate bed or rollers. The pulley that moves the belt is called the drive pulley, and there's an idler pulley that doesn't power the belt.

Pulley drives are categorized as head drives at the discharge end and tail drives at the infeed end of the conveyor belt. The preferred configuration is a head drive located at the discharge end, utilizing pulling force to set the conveyor belt in motion.

Conveyors serve a multitude of purposes, transporting materials and goods along a continuous path. While motorized conveyor belts represent the traditional conveying system, some systems employ non-motorized rollers to achieve the same purpose.


Grasping the Fundamentals of Conveyor Belts

On the surface, a conveyor belt may strike you as a mere looped band of rubber or fabric destined to move materials tirelessly. However, beneath this apparent simplicity lies a complex orchestra of pulleys, motors, and rollers, working in unison to transport materials from point A to point B.

Here is how belt conveyors work:


1. The Belt

At its core, a conveyor system finds its soul in the belt. This comprises layers of various materials like rubber, fabric, or metal, with the choice of material hinging on the specific application and the nature of the materials being transported.


2. Pulleys and Rollers

Conveyor belts rely on the guidance and support of pulleys and rollers. These components serve as sentinels at the conveyor's extremities and along its course, ensuring the belt stays taut preventing any sagging or slipping.


3. Drive Mechanisms

A conveyor system employs a drive mechanism to set the belt in motion. This might manifest as an electric motor, an internal combustion engine, or even a hand-operated crank, the selection contingent upon the scale and intended purpose of the conveyor.


4. Tensioning Mechanism

Efficiency hinges on precise tensioning of conveyor belts. This is where tensioning mechanisms, such as tensioning screws or counterweights, enter the scene, ensuring the belt maintains the desired level of tension.


5. Beneath the Surface

Beneath the belt, you'll often find a supporting structure that upholds the entire system. These support structures can range from straightforward frames to elaborate configurations engineered for heavyweight tasks.

The Diverse Varieties of Conveyor Belts

Conveyor belts manifest in various types, each tailor-made for specific applications. Understanding this variety is critical to appreciating these systems' versatility and ability to cater to a multitude of industries. Here, we'll delve into some common conveyor belt types.


Flat Belt Conveyors

The most rudimentary conveyor belt type, flat belt conveyors, primarily involves transporting objects on a level plane. Manufacturing and packaging industries are their primary domains.


Modular Belt Conveyors

Modular belts comprise interlocking pieces, offering adaptability and customization. These find their niche in the realms of food processing and beverage bottling.


Cleated Belt Conveyors

These belts, equipped with cleats or raised sections, secure a firm grip, facilitating uphill or inclined transport. Agriculture and mining industries often rely on their prowess.


Gravity Roller Conveyors

Shunning motorization, gravity roller conveyors leverage gravity to propel items along an inclined path. Such conveyors feature prominently in warehousing and distribution centers.


Chain Conveyors

In robust applications like automotive assembly lines, chain conveyors take center stage. They employ chains and sprockets to move items with finesse.


Screw Conveyors

Screw conveyors, as their name implies, utilize a rotating screw to transfer materials. This mechanism makes them ideal for bulk material handling, including grains and cement.


Witnessing Conveyor Belts in Action

With the groundwork laid for understanding conveyor belts, let's embark on a journey through their practical applications:


1. Loading

The odyssey begins with loading items onto the conveyor belt at one end. Depending on the setting, items are either placed manually or fed onto the belt through automated systems.

2. Seamless Transportation

Once aboard the conveyor, the drive mechanism springs to life. Be it a motor, an engine, or a manual crank, it sets the belt in motion, ushering items along its course.

3. Guided and Supported Journey

As the items traverse the conveyor, they receive the support and guidance of pulleys and rollers. This choreographed assistance ensures a steady and stable journey.

4. Arrival and Unloading

At the journey's end, items disembark from the conveyor belt. This step can involve manual handling or automated processes, encompassing sorting, packaging, or further processing tailored to the industry's needs.


Conveyor Belts in Everyday Life

The ubiquitous presence of conveyor belts in diverse industries underscores their significance. They serve as the linchpin for various applications, enhancing efficiency and productivity. Let's explore some notable sectors where conveyor belts wield their transformative power:

Manufacturing - In the heart of manufacturing plants, conveyor belts facilitate the seamless transportation of raw materials, components, and finished products, orchestrating the production dance.

Distribution and Warehousing - Warehouses and distribution centers count on conveyor systems to streamline operations such as sorting, packing, and shipping goods precisely and efficiently.

Mining- In the depths of mining operations, conveyor belts shoulder the monumental task of transporting bulk materials such as coal, ore, and gravel.

Agriculture - Conveyor belts find their place in agriculture, simplifying tasks like harvesting and sorting produce and efficiently moving grains and other bulk materials.

Food Industry - In food processing, conveyor belts are pivotal, ensuring product security and efficient movement throughout various production phases.

Automotive Industry - The automotive industry relies heavily on conveyor belts for painting, assembly, and meticulous vehicle inspection.



Conveyor belts are the unsung heroes that have reshaped the material handling landscape across industries. Beneath their seemingly straightforward exteriors lie intricate engineering marvels that fuel modern industrial processes. Whether in manufacturing, mining, or the food industry, they play a pivotal role, seamlessly ensuring the efficient flow of materials and contributing to heightened productivity. They are a marvel that shapes the world a revolution at a time.
